Close MenuGoulds HSJ15N 1 1/2HP Convertible Water Well Jet Pump 115/230V
The multi-stage convertible jet pump is specifically designed to deliver high capacities at greater pressure. HSJ pumps are easily serviceable. They can be taken apart by removing four bolts. The Stainless steel pump shaft hex design provides positive drive for impellers and eliminates clearance adjustments. The HSJ is designed for use on shallow or deep well applications using appropriate GouldsWater Technology fittings. The HSJ Pump is specifically designed for homes, farms, cottages, and booster systems.
Specifications:
- Horsepower: 1 1/2
- Phase: Single
- Volts: 115/230
- Pipe Connections: 1-1/4" Suction, 1" discharge
1-1/4 HOSE SOLD SEPERATELY
Features:
Connections: - for 25mm (1") bore hose
Dimensions: - 250mm long, 170mm wide, 120mm high, with 260mm handle (nominal dimensions for variable pump configuration)
Output: - up to 45 litres/minute (10 gallons/minute)
For surface mounting on bulkhead or deck.
Light compact pump.
Ports and bodies can be positioned in 96 different ways for maximum flexibility of installation.
Stainless steel handle with bulkhead clips.
Self-priming up to 4m.
Packaged Dimensions: L:23.00 x H:16.00 x W:21.00cm
Actual Weight: 0.96 Kg (Approx. 1.26 Kg packed)
1/2HP PUMP GOULDS

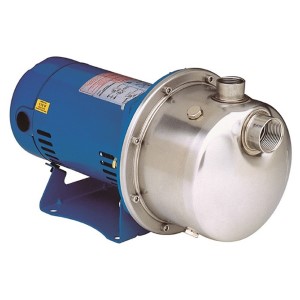

The Goulds LB0512 booster pump can achieve up to 20 GPM at 3500 RPM, and is perfect for use at your car or pressure washing business. It has a single phase, 0.5 HP motor and open drip proof motor enclosure design. A 115/230 volt electrical connection is required for operation.
Part of the LB series
Maximum flow: 20 GPM
Maximum pressure: 85 PSIG
Maximum speed: 3500 RPM
Maximum temperature: 140? F
0.5 HP, 60 Hz
Single phase
4.5" Noryl impeller
Open drip proof motor enclosure
Stainless steel casing
115/230 volts
Suction: 1.25" NPT
Discharge: 1" NPT
Heads to 190 feet
Goulds item #LB0512
